SKJ-2.5E Small Volume Din Rail Connector Blocks Antiflaming And Anticorrosion

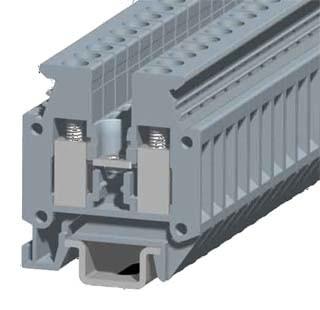

SKJ-2.5E DIN RAIL terminal block

Descruotion:

1.General specifications SKJ-2.5E terminal blocks Compliance with international standards : IEC60947-7-1

2.Wire range : rigidity wire : 0.2-4mm, flexibility wire : 0.2-2.5mm.

3.Terminal can used in TH35 and G32 rail.

4.Insulation material is PA66, Antiflaming and anticorrosion.

5.Small volume, complete range of articles.

6.self locking function, crimping fastness.

Specifications:

Model Number
T/W/H(mm)	285.232
Clamping screw	M3
Torque	0.6-0.8N.M
Stripping Length	6-8mm
Rated Voltage	400V
Reted Current	32A
Cross Section	2.5mm2
Wire cross section, solid core	0.2-4mm2
Wire cross section, stranded	0.2-2.5mm2
Packaging Detail	100pcs/box;2500pcs per carton
Certification	UL/RoHS/EX
